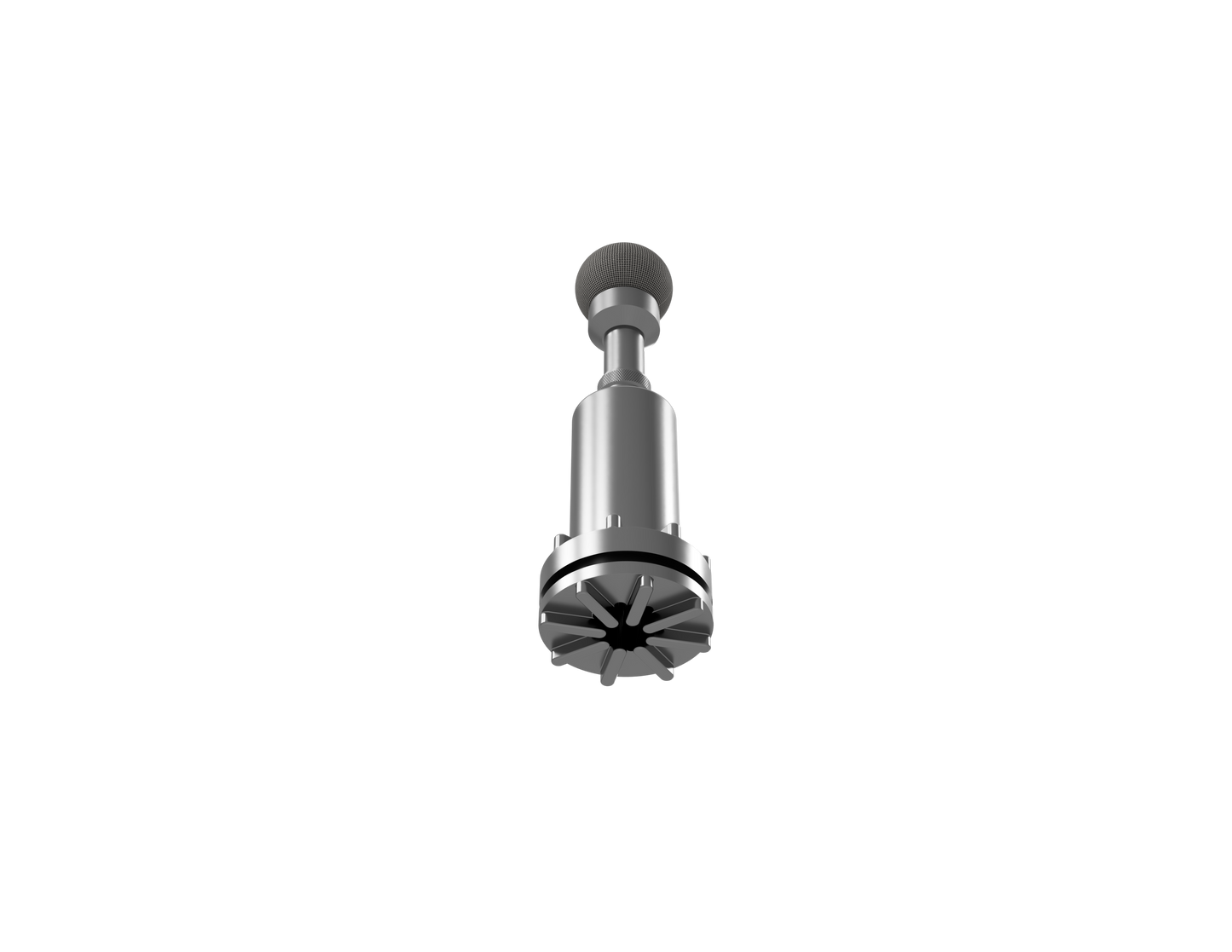

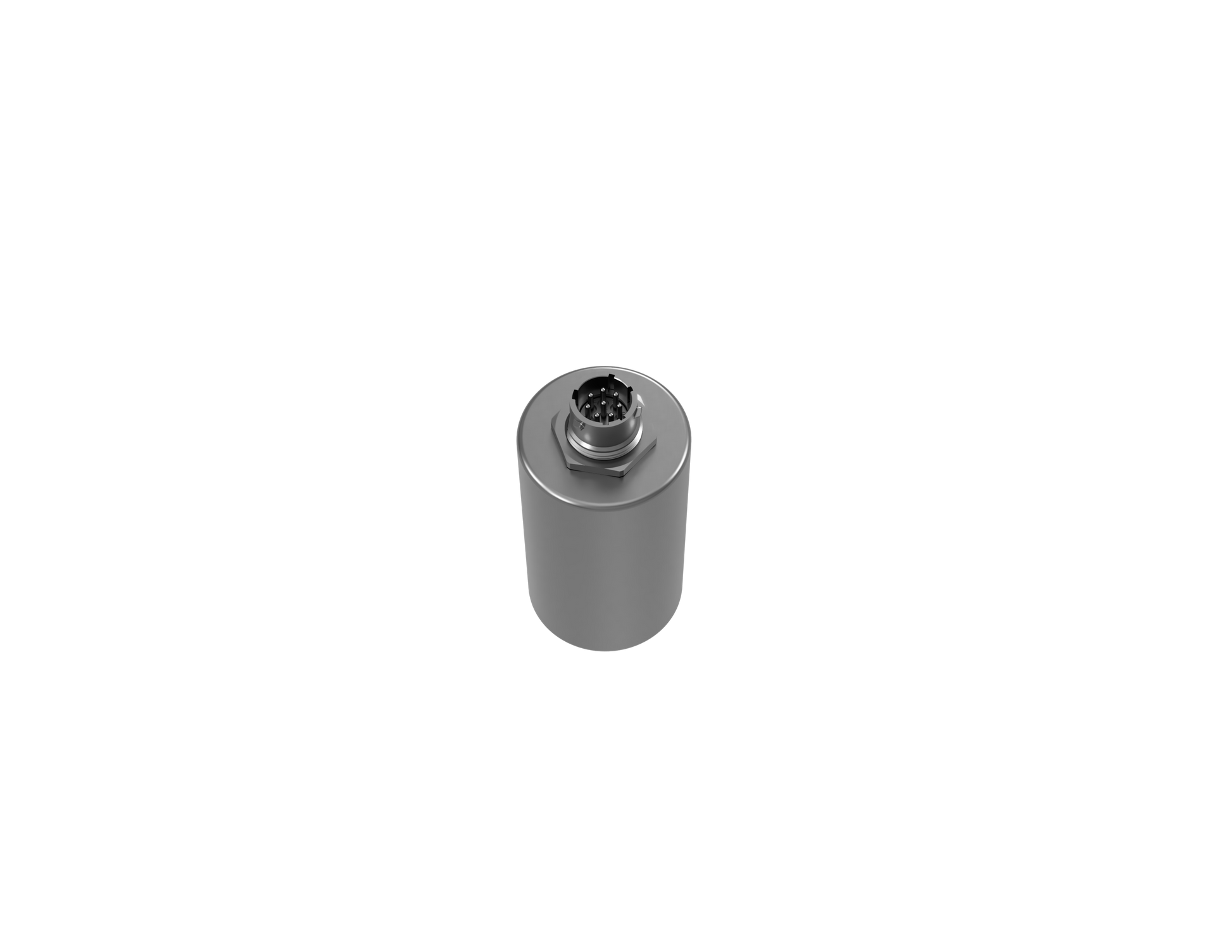

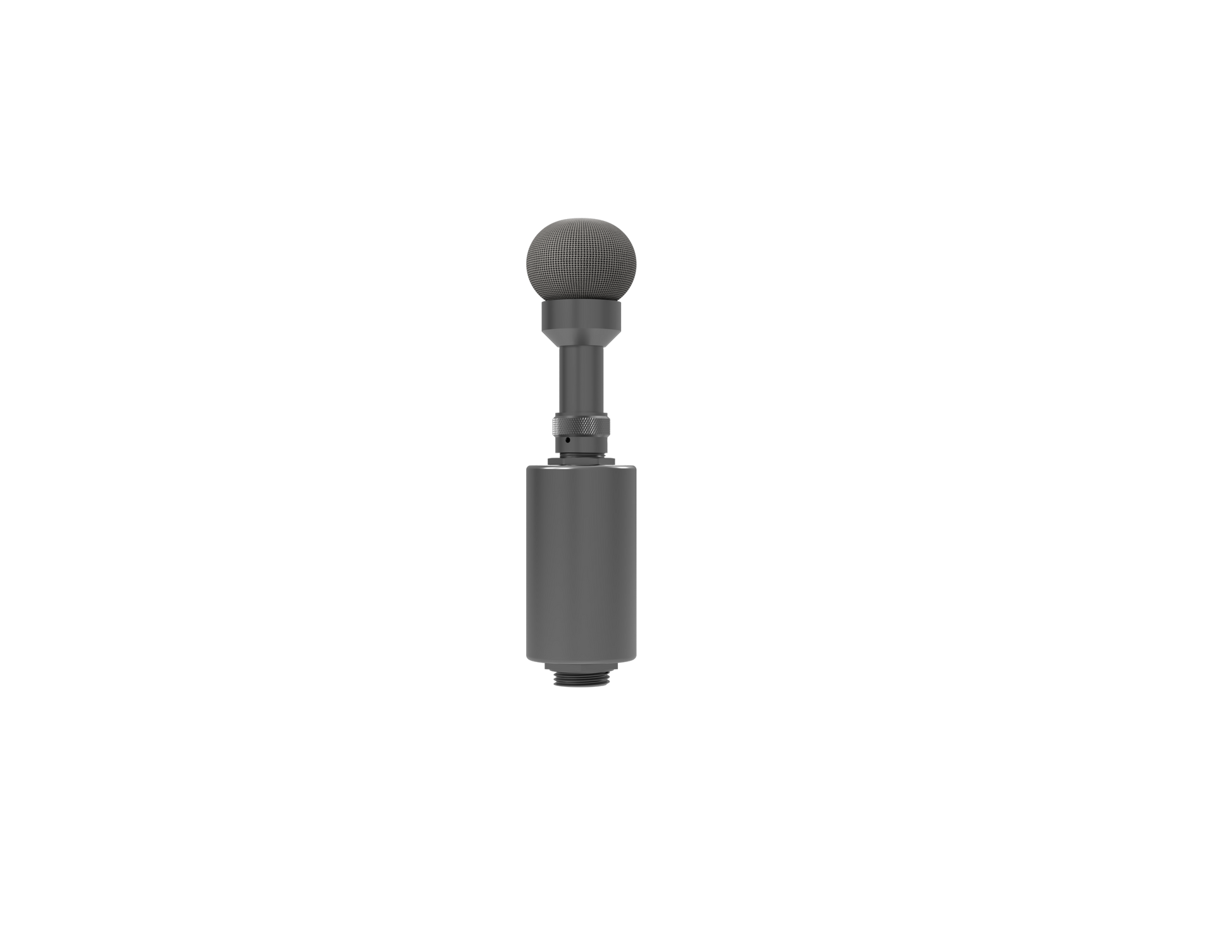

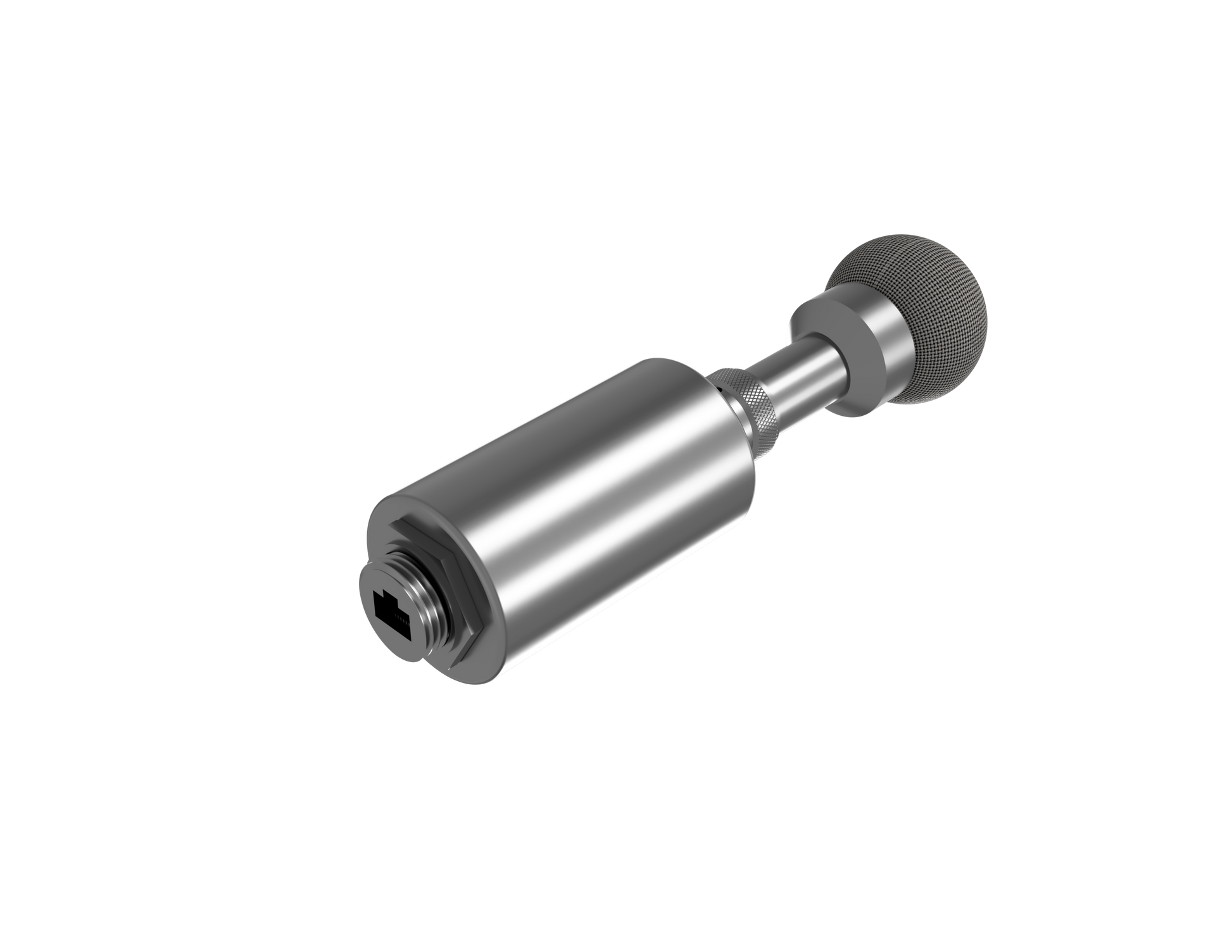

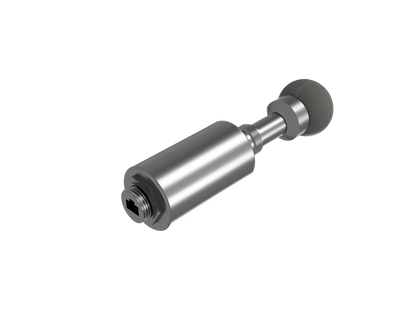

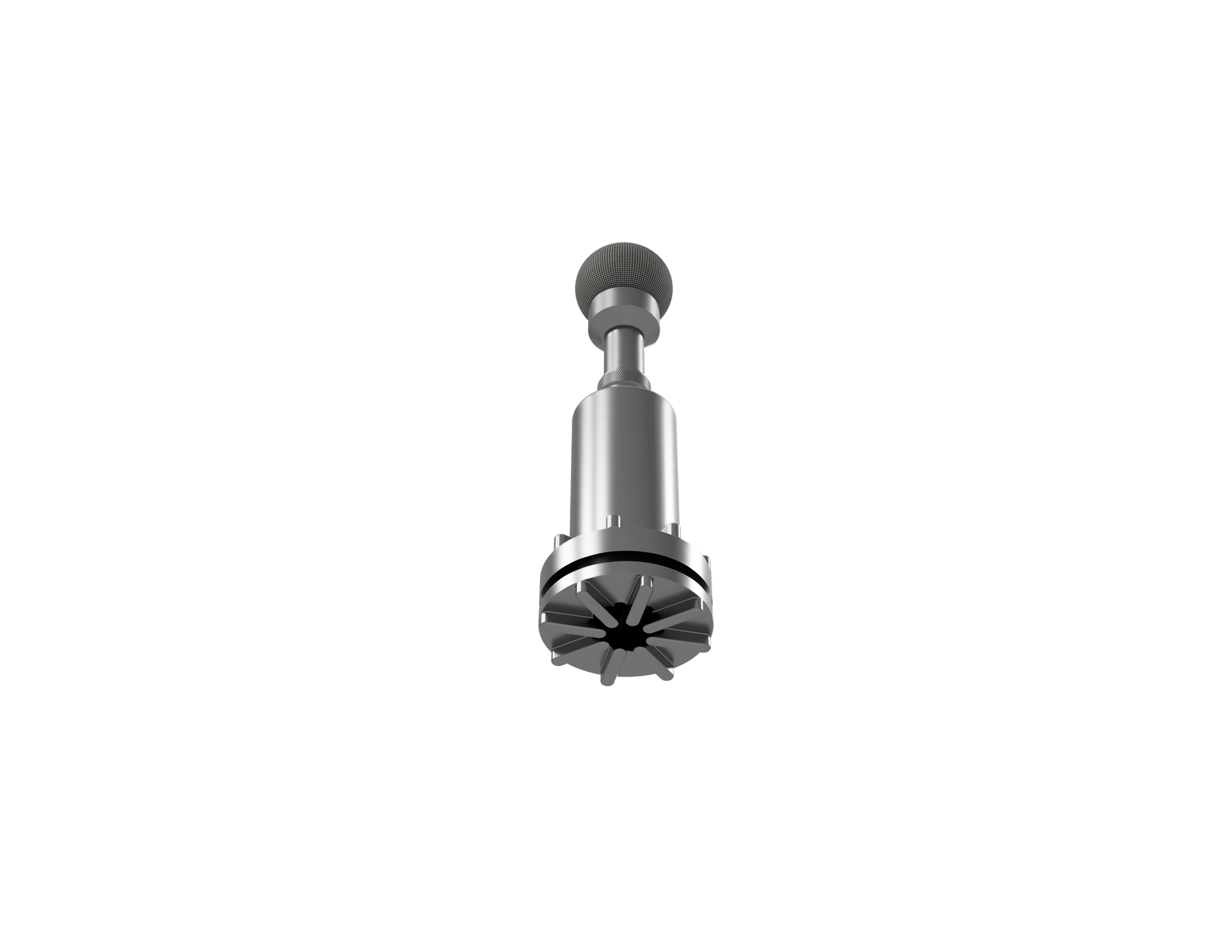

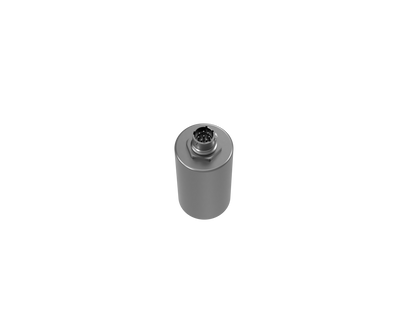

audioPMD Sound Intensity Probe with edgeHPC

audioPMD(TM) Industrial AI Edge Computer integrated with Sound Intensity Probe - providing intelligent audio analytics for wind turbines and supporting the Predictive Maintenance optimization.

TECHNICAL SPECIFICATION

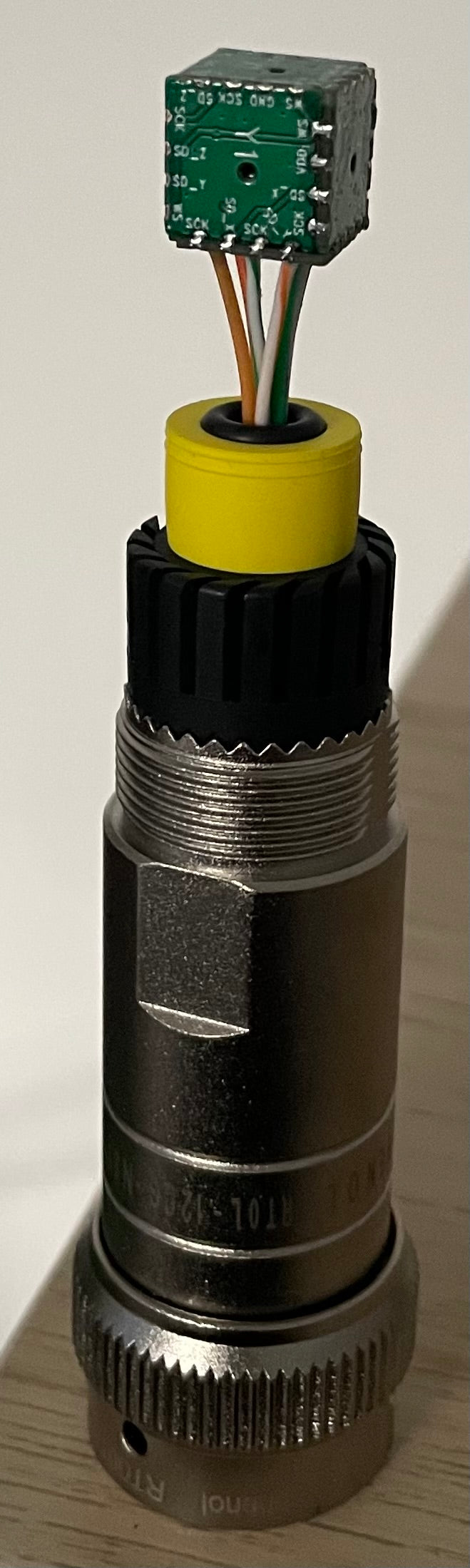

• 3D microphone array (6x MEMS);
• audioPMD streamer board (ARM);

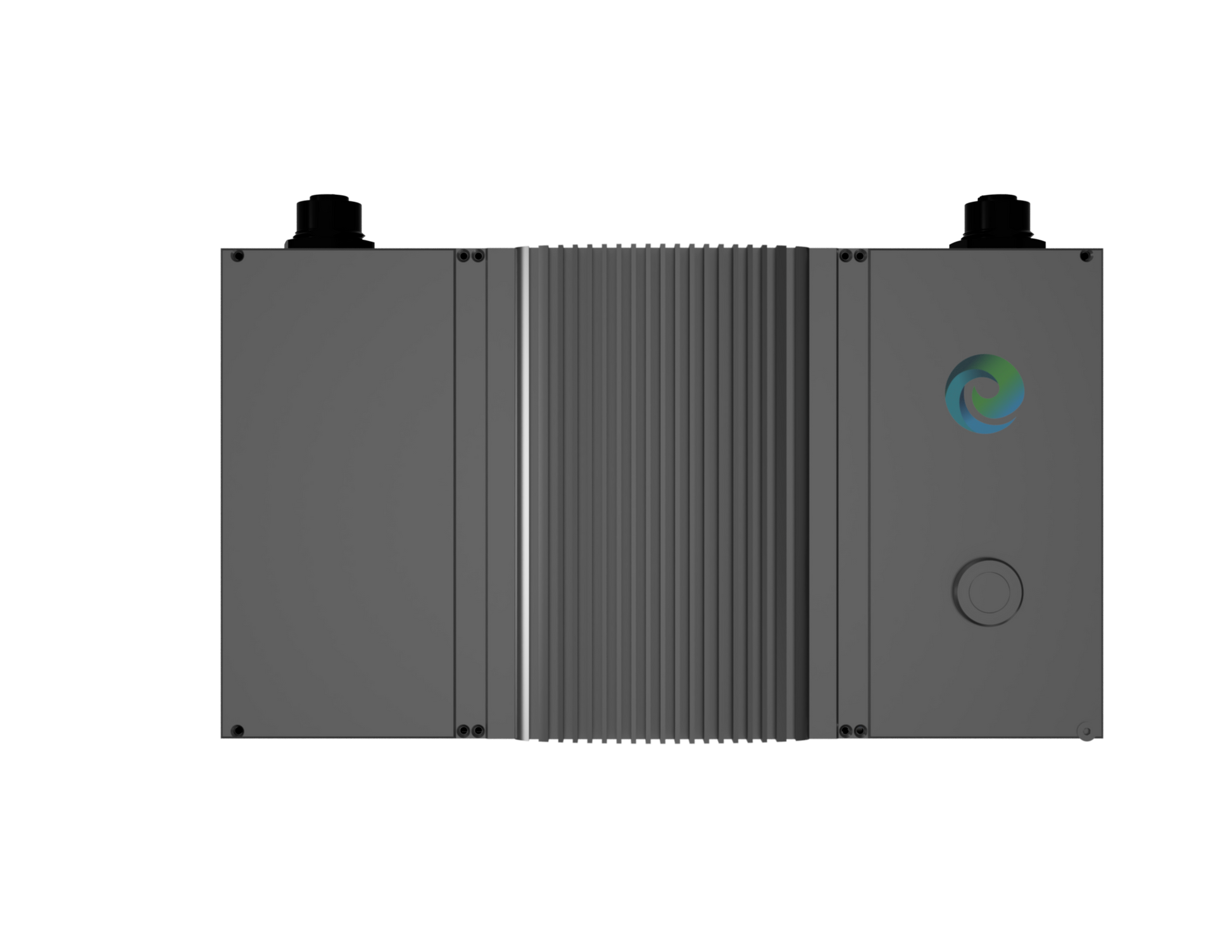

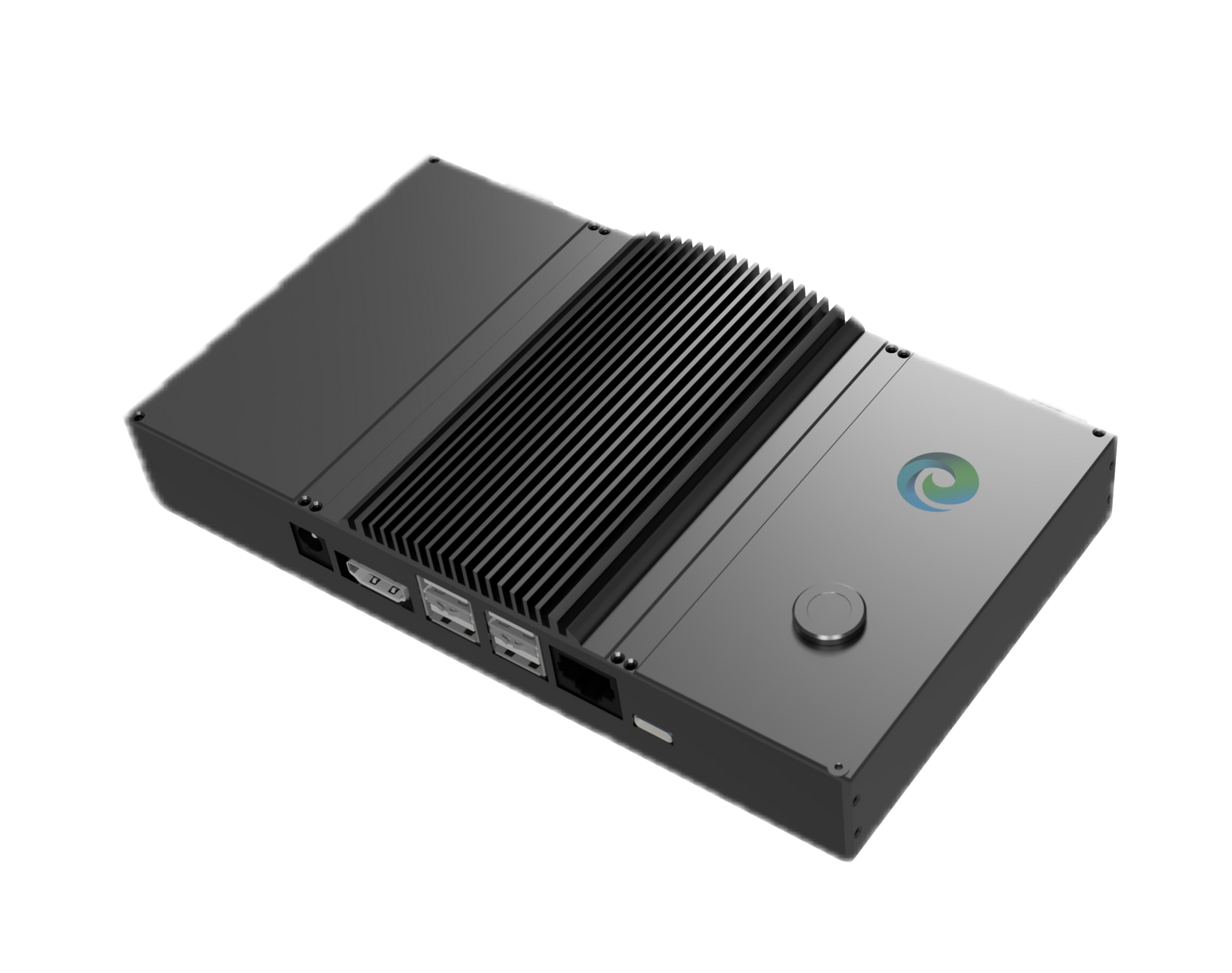

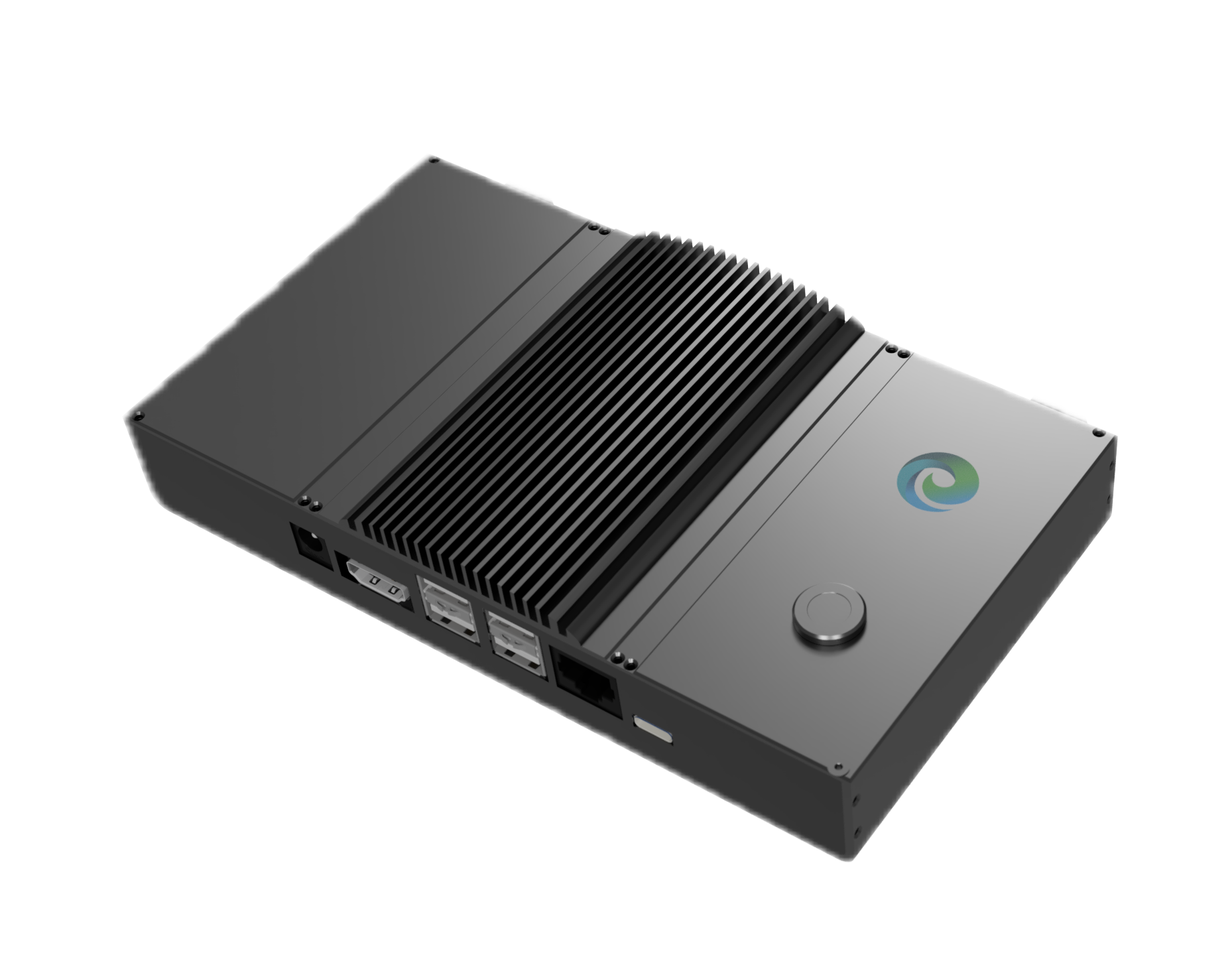

• Nvidia Jetson NX 8 GB edge computer in industrial passive cooled housing;
• 1TB NVMe SSD;

• Communication: Ethernet (PoE);
• Options: WiFi M.2 module and/or 4G/LTE Out-of-Band module;

• IP67 rating for electronics housing, IP64 for microphone enclosure

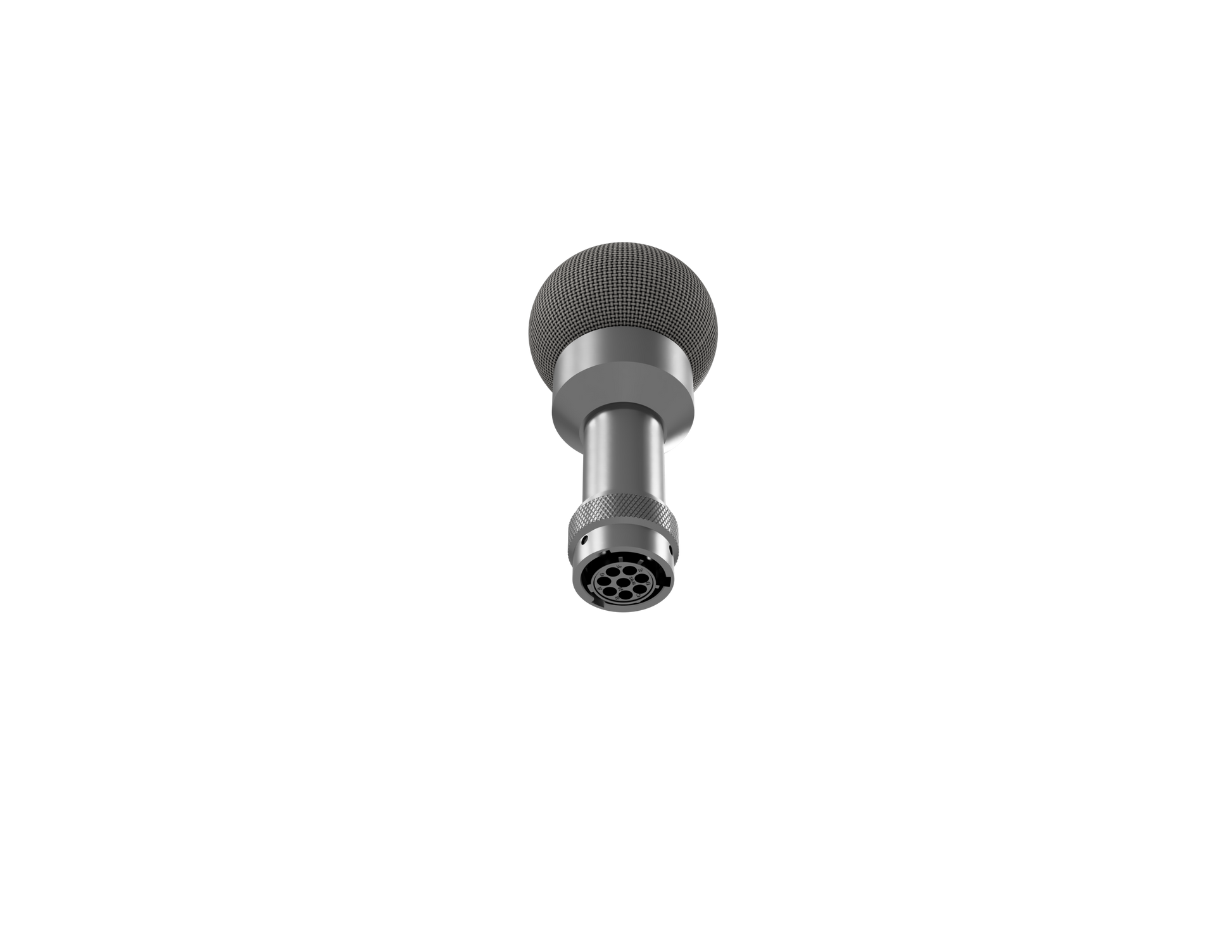

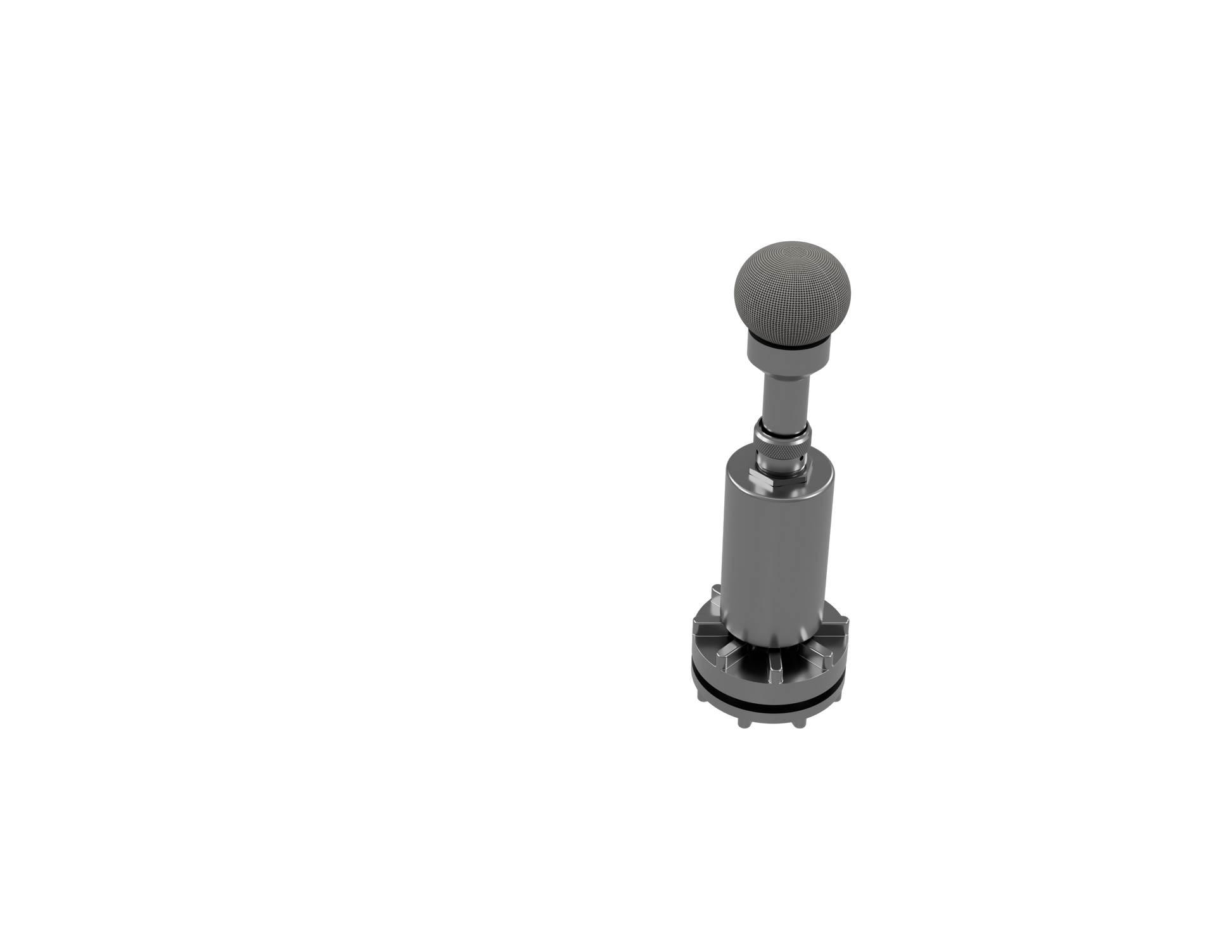

• Dimensions (3D mic. module) [mm]: 210 x Dia.50
• Dimensions (edge computer) [mm]: 210x105x35

• Weight (3D mic. module): 250g
• Weight (edge computer): 750g

INSTALLATION INSTRUCTIONS

OPTIONAL COMPONENTS

• audioPMD PoE Range Extender (up to 800m on Cat.6) x2;
• WiFi M.2 module;
• 5G/4G/LTE/GSM M.2 module;
• audioPMD Extended Range LoRa network package.
